Connecting the Jabra Speak 510 Wireless Bluetooth Speaker

This guide will walk you through connecting the Jabra Speak 510 Wireless Bluetooth Speaker.

This bluetooth microphone is compatible with laptops, tablets, and mobile devices!

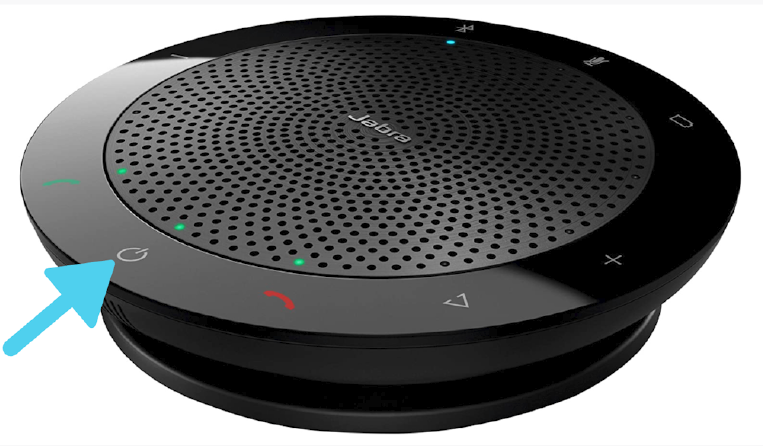

• First, turn on the speaker by holding the power button for 2 seconds.

  • If it doesn't turn on, it most likely needs to charge

• Set it on your desk or at the center of the table you and your group are working from

This speaker can connect to your device in 3 different ways.

Tip: If you're using a mobile device, follow the steps for using a Bluetooth connection.

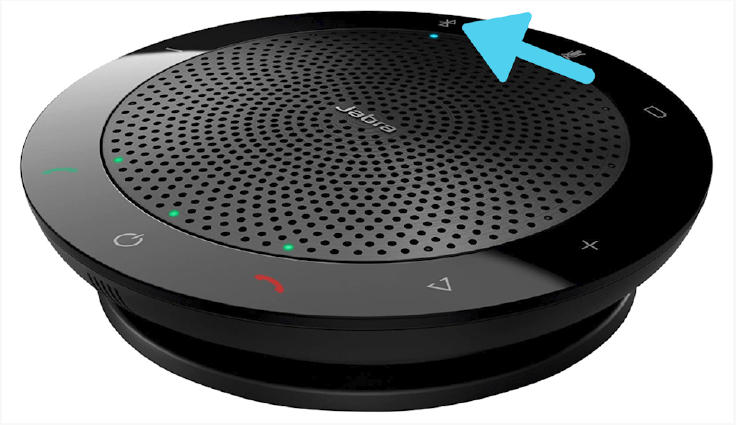

• Press and hold the speaker's Bluetooth button for 3 seconds until it flashes blue, then release

• Go to the Bluetooth settings on your computer or mobile device and turn on Bluetooth

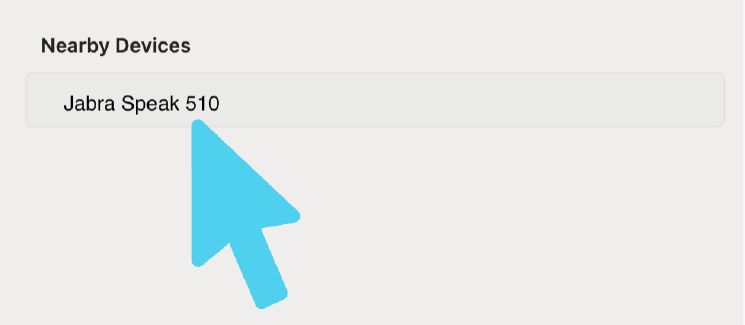

• Select the Jabra Speak options from the list of available bluetooth devices

  • If asked for a password, enter in 0000

    • Once the light on the Jabra speaker turns solid blue, the Jabra has connected to your device!

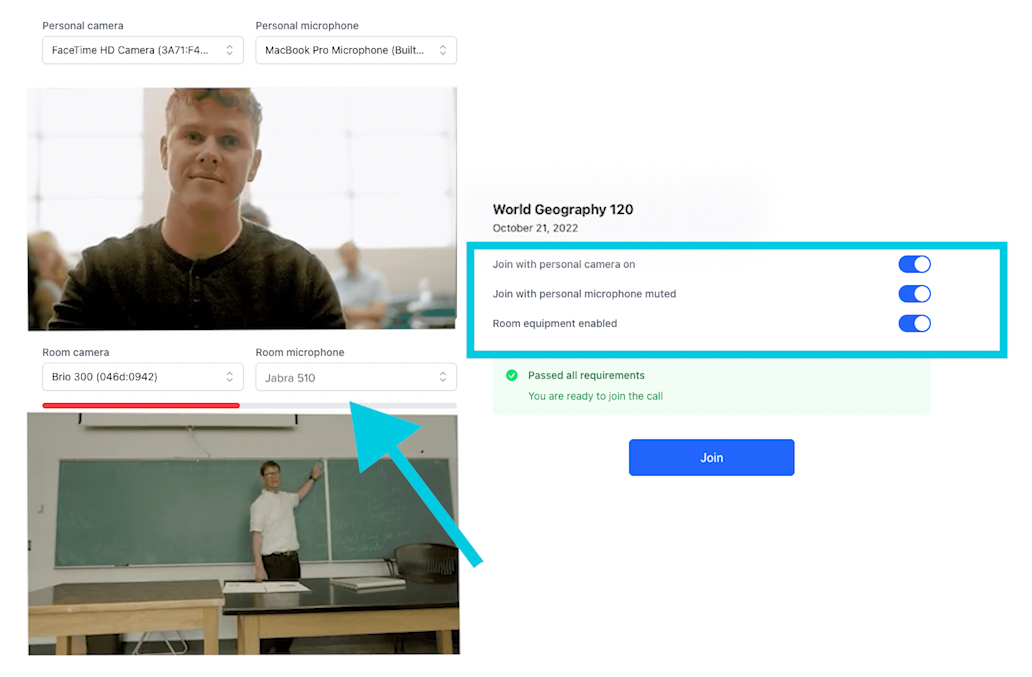

• When you join the SignGlasses session, select the Jabra microphone as your microphone.

• Plug the Jabra Speaker's USB cable into your computer.

  • Your computer should now automatically see this speaker as an audio option! If it doesn't recognize it, leave the cable connected and restart your computer.

• When you join the SignGlasses session, select the Jabra microphone as your microphone.

• Plug in the USB dongle for the Jabra Speaker

• Press and hold the speaker's Bluetooth button for 3 seconds until it flashes blue, then release and wait for it to turn solid blue. That means it is on.

  • If it doesn't turn solid blue after a minute or so, unplug the dongle and plug it back in.

• When you join the SignGlasses session, select the Jabra microphone as your microphone.

Any questions? Reach out to us at techsupport@signglasses.com or text us at (801) 477-7958.
